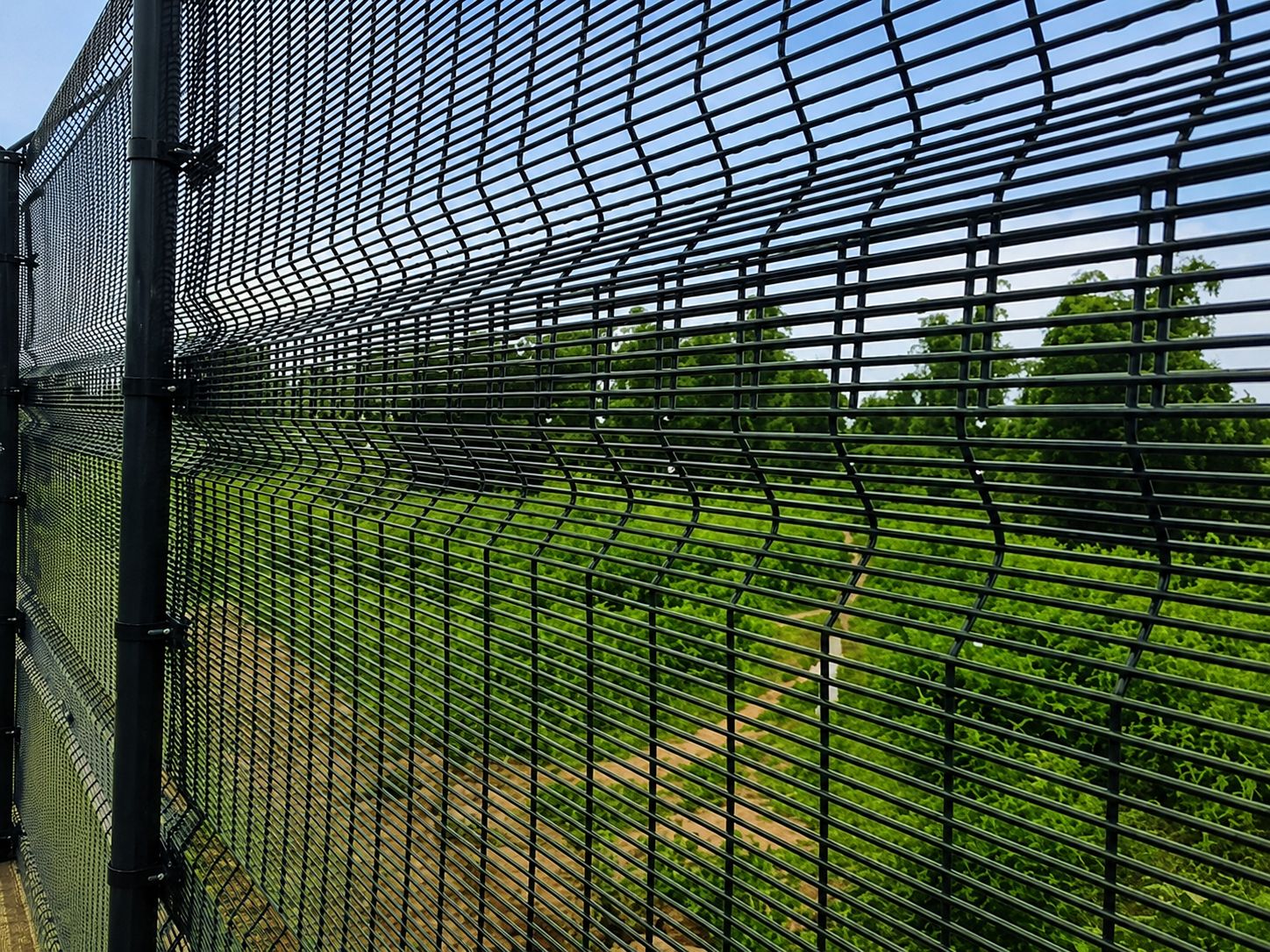

SK Weldedmesh manufactures 358 anti-climb welded mesh fencing (also called prison mesh or high-security mesh) for defence, railway, airport, power and industrial perimeters across India. The 76.2 × 12.7 mm aperture is too small for fingers, toes or bolt-cutter jaws, which is why 358 mesh is the standard choice where climbing and cutting must be stopped, not just discouraged.
| Mesh aperture | 76.2 × 12.7 mm (3″ × 0.5″) |
|---|---|
| Wire diameter | 4.0 mm (3.0 mm on request) |
| Panel width | 2515 mm |
| Panel height | 1.8 m to 6.0 m (2.4 m, 3.0 m and 4.0 m most common) |
| Posts | 60 × 60 mm or 80 × 80 mm SHS / RHS with anti-tamper fixings |
| Coating | Hot-dip galvanised, then polyester powder coated to minimum 80 microns as per IS 13871 |
| Standards | EN 10223-7, BS 1722-14 (security fencing) |
| Colour | RAL 6005 green, RAL 9005 black, or any RAL shade |
Need a non-standard height, a double-skin panel or a tender specification matched line by line? Send the specification and we will quote against it.
No finger or toe holds anywhere on the panel.
Small apertures and 4 mm wire defeat standard bolt cutters and wire cutters.
CCTV, PIR and radar see through the mesh, so the physical barrier supports the electronic one.
Galvanised plus powder coated panels last 15 years or more outdoors with no maintenance.
Panels, posts, clamps, security bolts and toppings (concertina coil, barbed wire, spikes) supplied together.
High weld shear strength at every intersection; panels resist impact and crowd pressure.
It is the imperial size of the mesh: 3 inches × 0.5 inches aperture with 8-gauge (4 mm) wire. The metric equivalent is 76.2 × 12.7 mm × 4.0 mm.
358 is the highest security level: the tight mesh stops climbing and cutting. 868 twin wire fencing has a 200 × 50 mm aperture with two horizontal wires per line, giving high rigidity for industrial and sports boundaries. 3D panel fencing has the same aperture with pressed V-folds, and is the economical choice for factories, schools and housing. We make all three.
Standard sizes in green or black ship within 2 to 3 weeks from order confirmation; project quantities are scheduled against the site programme.
Yes. Mill test certificates for the wire, galvanising and coating-thickness reports from our in-house lab, and third-party test reports from NABL-accredited laboratories on request.
Yes. Panels can be fixed on base plates to a compound wall or plinth beam, or set into concrete foundations as free-standing fencing.
We manufacture and supply across India and can install through our approved installation partners, or supply to your contractor with installation drawings.
