SK Weldedmesh manufactures 3D welded mesh fence panels in Kolkata as a Tata Steel Specialized Processing Centre. The V-folds pressed into each panel make a single 4 mm wire sheet rigid enough for a 2.4 m fence without a frame, which is why 3D panels are the most economical permanent fence for factories, warehouses, schools, housing projects and solar parks across India.
| Mesh aperture | 50 × 200 mm |
|---|---|
| Wire diameter | 4.0 mm standard; 5.0 mm heavy duty on request |
| Panel width | 2500 mm (±3%) |
| Panel height | 1.2, 1.5, 1.8, 2.0 and 2.4 m standard; up to 3.0 m on request |
| V-folds | 2 folds up to 1.5 m, 3 folds above 1.5 m |
| Posts | 60 × 40 mm or 60 × 60 mm RHS with cap, spider clamps and anti-tamper mushroom bolts |
| Coating | Galvanised wire, then polyester powder coated to minimum 80 microns as per IS 13871 |
| Standards | EN 10223-7, BS 1722-14; coating to IS 13871 |
| Colour | RAL 6005 green, RAL 9005 black, RAL 7016 grey, or any RAL shade |
Supplied as a complete kit: panels, posts, post caps, clamps, bolts and gates. Send your boundary length and height and we will quote the full kit.
V-folds give a light 4 mm panel the stiffness of a framed panel, so it costs less and installs faster.
The 50 × 200 mm mesh keeps the boundary visible for guards and CCTV, with no hiding places.
Galvanised then powder coated panels last 15 years or more outdoors with no painting.
Panels, posts, caps, clamps and anti-tamper bolts arrive together, ready to install.
Powder coated mesh has no resale value, so it is not stolen the way chain link and barbed wire are.
Neat, uniform panels suit campuses, housing and public spaces as well as industrial sites.

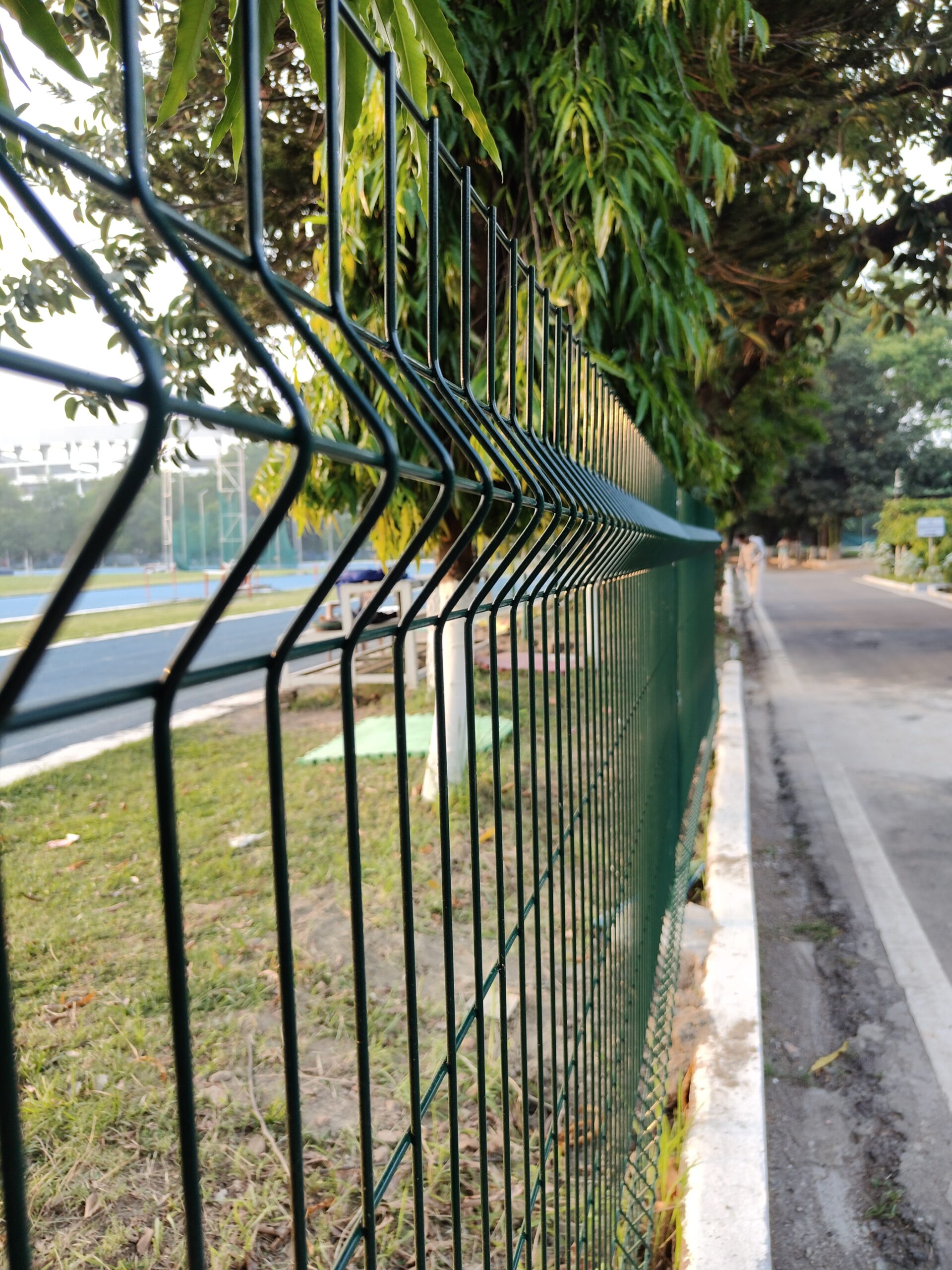

A welded mesh panel with horizontal V-shaped folds (two or three per panel) that make a single 4 or 5 mm wire sheet rigid without a frame. The 50 × 200 mm aperture keeps it see-through while stopping people from passing through, and the folds give it the strength of a much heavier panel at a lower cost.
3D panel is the economical general-purpose fence for factories, warehouses, schools, housing and solar parks. 868 twin wire is chosen where a flat, heavier panel is specified. 358 anti-climb mesh is for defence, railway and prison perimeters where climbing and cutting must be stopped.
Standard heights 1.2, 1.5, 1.8, 2.0 and 2.4 m in 4.0 mm wire; 5.0 mm wire and heights up to 3.0 m on request. Panels are 2500 mm wide.
Yes. Posts can be bolted to a wall or plinth beam with base plates, or set in concrete foundations for free-standing fencing. We supply installation drawings with every order.
Yes. Mill test certificates for the wire, galvanising and coating-thickness reports from our in-house lab, and third-party NABL test reports on request.
Standard sizes in green or black ship within 2 to 3 weeks from order confirmation; project quantities are scheduled against the site programme.
SK Weldedmesh manufactures 3D welded mesh panels as a Tata Steel Specialized Processing Centre, using Tata Wiron galvanised wire. Every panel is welded, folded and powder coated in our own plant, tested in our in-house lab, and supplied with posts, clamps and fixings as one kit.
